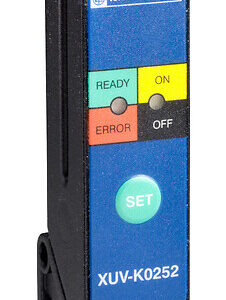

XUVK0252S
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Photoelectric sensors XU, thru beam, Sn 2 mm, NO or NC, M8 connector
جزئیات محصول
| وزن | 130 گرم |
|---|---|
| ابعاد | 3.6 × 8 × 8.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application packaging |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUV |
| Sensor design |
Fork |
| Detection system |
Thru beam |
| Emission |
Infrared |
| Type of setting |
Without |
| Material |
Metal |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
PNP and NPN |
| Discrete output function |
2 NO/NC programmable |
| Electrical connection |
1 male connector M8 adjustable through 90° ,4 pins |
| Product specific applicatio |
Detection of labels |
| Enclosure material |
Zinc alloy |
| Setting-up |
Teach mode |
| Lens material |
Glass |
| Type of output signal |
Discrete |
| Output type |
Solid state |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Status LED |
Output state: 1 LED (yellow) ,read error: 1 LED (red) ,Sensor ready: 1 LED (green) |
| Current consumption |
<= 50 mA no-load |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Maximum voltage drop |
– |
| Delay first up |
30 MILLISECOND |
| Delay response |
0.1 MILLISECOND |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
8.2 CENTIMETER |
| Package 1 width |
8 CENTIMETER |
| Package 1 length |
3.6 CENTIMETER |
