XUVR0303PBNM8
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

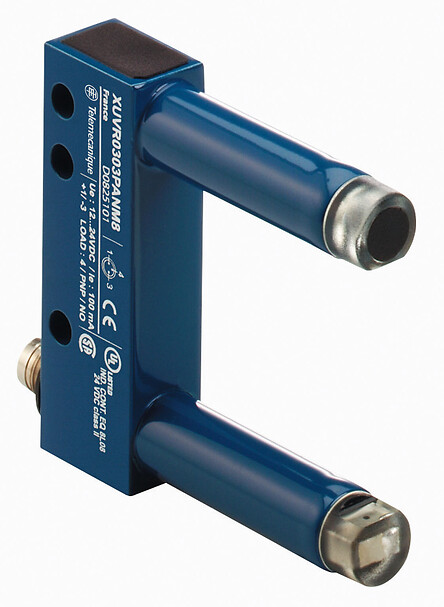

Photoelectric sensors XU, XUV, 12…24 VDC, M8
جزئیات محصول
| وزن | 74 گرم |
|---|---|
| ابعاد | 16.3 × 13.1 × 1.8 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application material handling |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUY |
| Material |
Metal |
| Supply circuit type |
DC |
| Wiring technique |
4-wire |
| Discrete output type |
PNP or NPN |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M8 ,4 pins |
| Product specific applicatio |
Dynamic detection of passage of objectsstatic detection of passage of objects |
| Lens material |
Altuglass |
| Enclosure material |
Painted aluminium |
| Type of output signal |
Discrete |
| Output type |
Solid state |
| Time delay range |
0…5 s off-delay delay |
| [Us] rated supply voltage |
24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Maximum delay recovery |
0.1 ms |
| Voltage drop |
<2 V (closed state) |
| Delay first up |
100 MILLISECOND |
| Current consumption |
<= 150 mA no-load |
| Setting-up |
Sensitivity adjustment with potentiometer |
| Vibration resistance |
25 gn ,amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
1.8 CENTIMETER |
| Package 1 width |
13.1 CENTIMETER |
| Package 1 length |
16.3 CENTIMETER |
| Package 1 weight |
74 GRAM |
