XUVR1212PANM8
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

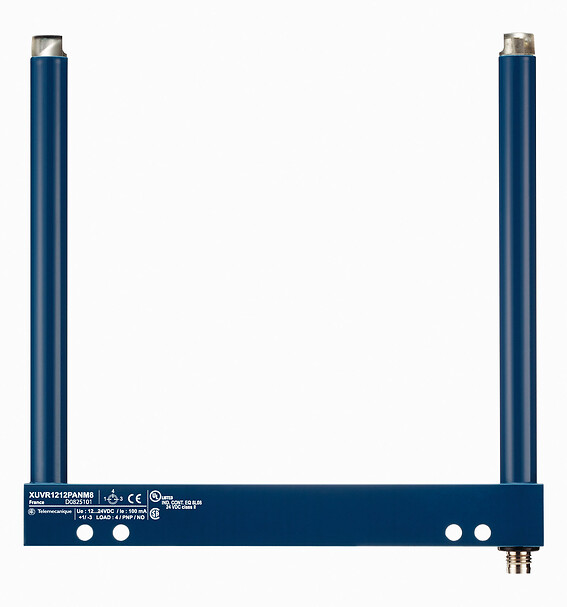

Photoelectric sensors XU, XUV, fork, 120X120mm, 12…24 VDC, M8
جزئیات محصول
| وزن | 146 گرم |
|---|---|
| ابعاد | 30.8 × 15 × 2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUVR |
| Sensor design |
Fork |
| Detection system |
Thru beam |
| Emission |
modulated ,Red LED |
| Material |
Metal/plastic |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
PNP |
| Discrete output function |
1 NO |
| Electrical connection |
1 male connector M8 ,3 pins |
| Product specific applicatio |
Detection on small conveyor |
| Enclosure material |
Painted aluminium and polyamide/glass |
| Type of output signal |
Discrete |
| Output type |
Solid state |
| Status LED |
Output state: 1 LED (yellow) |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
100 mA (overload and short-circuit protection) |
| Voltage drop |
<1.5 V (closed state) |
| Current consumption |
< 20 mA no-load |
| Vibration resistance |
7 gn ,amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 ,IP67 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2 CENTIMETER |
| Package 1 width |
15 CENTIMETER |
| Package 1 length |
30.8 CENTIMETER |
| Package 1 weight |
146 GRAM |
| Unit type of package 2 |
S04 |
| Number of units in package |
55 |
| Package 2 height |
30 CENTIMETER |
| Package 2 width |
40 CENTIMETER |
| Package 2 length |
60 CENTIMETER |
| Package 2 weight |
8.942 KILOGRAM |
