وزن	199 گرم
ابعاد	13 × 9.5 × 4.2 سانتیمتر
Range of product	Telemecanique Photoelectric sensors XU
Series name	General purpose multimode
Electronic sensor type	Photo-electric sensor
Sensor name	XUX
Sensor design	Compact 92 x 71
Detection system	Multimode
Material	Plastic
Type of output signal	Discrete
Supply circuit type	DC
Wiring technique	3-wire
Discrete output function	1 NO or 1 NC programmable
Electrical connection	1 male connector M12, 4 pins
Product specific applicatio	Not applicable
Emission	Infrared diffuse, infrared diffuse with background suppression, infrared thru beam, red polarised reflex
Enclosure material	PBT
Lens material	PMMA
Output type	Solid state
Add on output	<= 100 mA with overload and short-circuit protection, With alarm output
[Us] rated supply voltage	12…24 V DC with reverse polarity protection
Status LED	1 LED (green) for supply, 1 LED (red) for instability, 1 LED (yellow) for output state
Switching capacity in mA	<= 100 mA (overload and short-circuit protection)
Switching frequency	250 Hz
Maximum voltage drop	<1.5 V (closed state)
Current consumption	<= 35 mA no-load
Delay first up	200 MILLISECOND
Delay response	2 MILLISECOND
Delay recovery	2 MILLISECOND
Setting-up	Self teaching
Vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6
Shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27

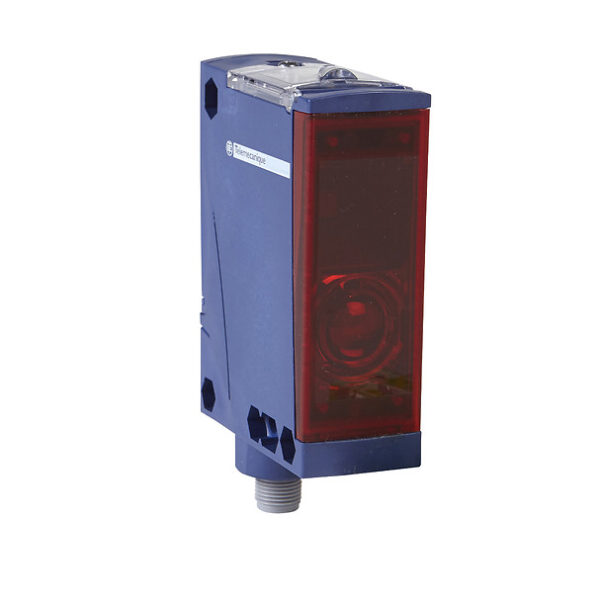

XUX0AKSAM12
