XUX0AKSAT16
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

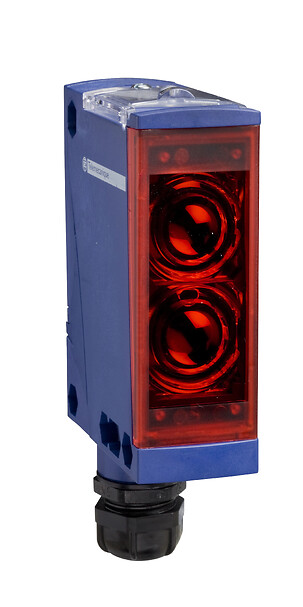

Photoelectric sensors XU, XUX, multi, Sn 0…40 m, 12…24 VDC, terminals
جزئیات محصول
| وزن | 201 گرم |
|---|---|
| ابعاد | 13 × 9.5 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose multimode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUX |
| Sensor design |
Compact 92 x 71 |
| Detection system |
Multimode |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 x 1.5 mm² or 1 x 0.75 mm² with adaptor ,Screw-clamp terminals |
| Product specific applicatio |
Not applicable |
| Emission |
Infrared diffuse ,infrared diffuse with background suppression ,infrared thru beam ,red polarised reflex |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Output type |
Solid state |
| Cable entry |
1 entry for M16 x 1.5 cable gland ,cable outer diameter: 7-10 mm |
| Add on output |
<= 100 mA with overload and short-circuit protection ,With alarm output |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Status LED |
1 LED (green) for supply ,1 LED (red) for instability ,1 LED (yellow) for output state |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Switching frequency |
250 Hz |
| Maximum voltage drop |
<1.5 V (closed state) |
| Current consumption |
<= 35 mA no-load |
| Delay first up |
200 MILLISECOND |
| Delay response |
2 MILLISECOND |
| Delay recovery |
2 MILLISECOND |
| Setting-up |
Self teaching |
| Vibration resistance |
7 gn ,amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
