XUX8AKSAT16
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

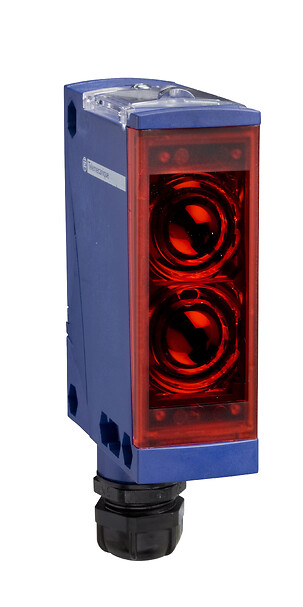

Photoelectric sensors XU, XUX, BGS, Sn 2 m, 12…24 VDC, terminals
جزئیات محصول
| وزن | 195 گرم |
|---|---|
| ابعاد | 13.2 × 9.6 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose single mode |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUX |
| Sensor design |
Compact 92 x 71 |
| Detection system |
Diffuse with background suppression |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Discrete output type |
PNP or NPN |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 x 0.75…1 x 1.5 mm² ,Screw-clamp terminals |
| Product specific applicatio |
Long sensing distance with high accuracy |
| Emission |
Infrared |
| Enclosure material |
PC |
| Lens material |
PMMA |
| Status LED |
– |
| Output type |
Solid state |
| Cable entry |
cable outer diameter: 7-10 mm ,ISO 16 cable gland |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Voltage drop |
<1.5 V (closed state) |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Switching frequency |
150 Hz |
| Current consumption |
35 mA no-load |
| Delay first up |
200 MILLISECOND |
| Delay response |
3.5 MILLISECOND |
| Delay recovery |
2.5 MILLISECOND |
| Product certifications |
CSACEUL |
| Vibration resistance |
7 gn (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
10 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP30 conforming to IEC 60529 (with cover open) ,IP65 conforming to IEC 60529 (double insulation) ,IP67 conforming to IEC 60529 (double insulation) |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
9.6 CENTIMETER |
| Package 1 length |
13.2 CENTIMETER |
| Package 1 weight |
195 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
22 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.607 KILOGRAM |
