قیمت محصول
توضیحات

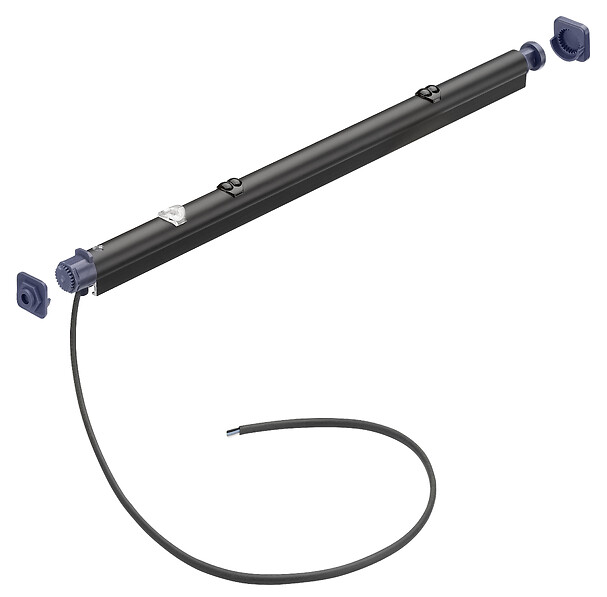

Photoelectric XU Roller Sensor 420mm 2 lens Space 162mm, IP50, Cable 0,2 m, M12
جزئیات محصول
| وزن | 89 گرم |
|---|---|
| ابعاد | 42 × 1.7 × 1.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application ,conveyor system and access control |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUY |
| Sensor design |
Roller sensor |
| Detection system |
Diffuse |
| Material |
Metal |
| Type of output signal |
Discrete |
| Supply circuit type |
DC |
| Wiring technique |
4-wire |
| Discrete output type |
PNP or NPN |
| Discrete output function |
1 NO or 1 NC |
| Electrical connection |
1 remote connector M12 ,4 pins |
| Product specific applicatio |
Conveyor system |
| Enclosure material |
Aluminium |
| Lens material |
Polycarbonate |
| Cover material |
PVC |
| Output type |
Solid state |
| Voltage drop |
<2 V at 100 mA |
| Switching capacity in mA |
100 mA (overload and short-circuit protection) |
| Current consumption |
< 35 mA no-load |
| Delay response |
1 ms |
| IP degree of protection |
IP50 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
1.2 CENTIMETER |
| Package 1 width |
1.7 CENTIMETER |
| Package 1 length |
42 CENTIMETER |
| Package 1 weight |
89 GRAM |
| Unit type of package 2 |
BB1 |
| Package 2 height |
5 CENTIMETER |
| Package 2 width |
38.5 CENTIMETER |
| Package 2 length |
97 CENTIMETER |
| Package 2 weight |
2.725 KILOGRAM |
| Unit type of package 3 |
P12 |
| Number of units in package |
240 |
| Package 3 height |
45 CENTIMETER |
| Package 3 width |
80 CENTIMETER |
| Package 3 length |
120 CENTIMETER |
| Package 3 weight |
33.36 KILOGRAM |
