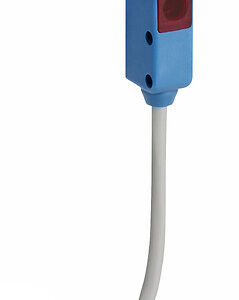

Photoelectric sensors XU, XUY 989, emitter, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 59 گرم |
|---|---|
| ابعاد | 13 × 7 × 3.5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUY |
| Sensor design |
Miniature |
| Detection system |
Thru beam |
| Material |
Plastic |
| Supply circuit type |
DC |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
Cable |
| Product specific applicatio |
Conveyor system and access control series |
| Emission |
– |
| Enclosure material |
ABS |
| Lens material |
PMMA |
| Cover material |
PVC |
| [Us] rated supply voltage |
– |
| Voltage drop |
<1 V at 10 mA (closed state) ,<2 V at 100 mA (closed state) |
| Switching capacity in mA |
100 mA (overload and short-circuit protection) |
| Current consumption |
< 25 mA no-load |
| Delay response |
1 ms |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Package 1 height |
3.5 CENTIMETER |
| Package 1 width |
7 CENTIMETER |
| Package 1 length |
13 CENTIMETER |
| Package 1 weight |
59 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
35 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.407 KILOGRAM |
