قیمت محصول
توضیحات

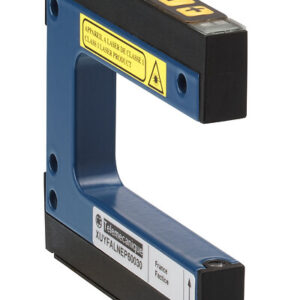

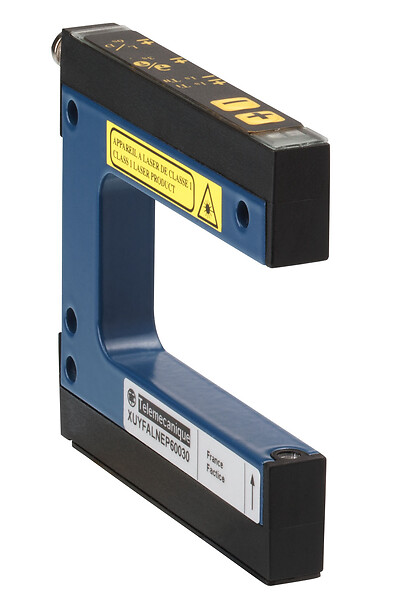

Photoelectric sensors XU, XUY, fork, laser, teach, 50X95mm, 12…24 VDC, M8
جزئیات محصول
| وزن | 98 گرم |
|---|---|
| ابعاد | 13 × 16 × 1.5 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUY |
| Sensor design |
Fork |
| Detection system |
Thru beam |
| Emission |
Infrared laser ,modulated – class 1 conforming to IEC 825-1 |
| Material |
Metal/plastic |
| Supply circuit type |
DC |
| Wiring technique |
4-wire |
| Discrete output type |
PNP and NPN |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M8 ,4 pins |
| Product specific applicatio |
Detection of transparent objectdetection on small conveyordetection on vibrating raildetection of reference marks |
| Enclosure material |
Painted aluminium and polyamide/glass |
| Type of output signal |
Discrete |
| Output type |
Solid state |
| Status LED |
adjustment mode and keypad locking: 1 LED (red) ,Output state: 1 LED (yellow) |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
100 mA (overload and short-circuit protection) |
| Voltage drop |
<2 V (closed state) |
| Current consumption |
40 mA no-load |
| Setting-up |
Self teaching |
| Vibration resistance |
7 gn ,amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27 |
| IP degree of protection |
IP65 conforming to IEC 60529 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
1.5 CENTIMETER |
| Package 1 width |
16 CENTIMETER |
| Package 1 length |
13 CENTIMETER |
| Package 1 weight |
98 GRAM |
