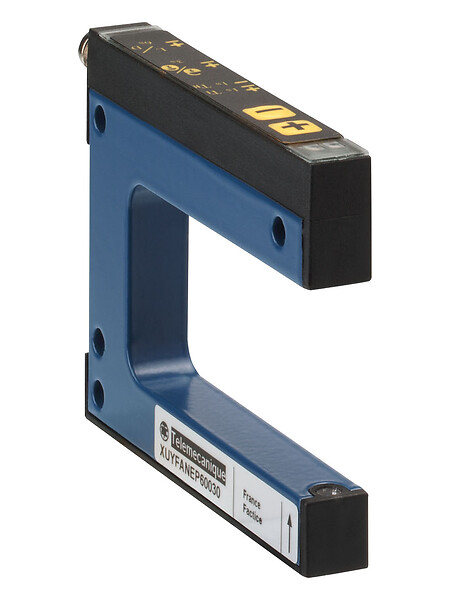

Photoelectric sensors XU, XUY, fork, teach, 50X59mm, 12…24 VDC, M8
جزئیات محصول
| وزن | 82 گرم |
|---|---|
| ابعاد | 16.2 × 13.2 × 1.7 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
Application |
| Electronic sensor type |
Photo-electric sensor |
| Sensor name |
XUY |
| Sensor design |
Fork |
| Detection system |
Thru beam |
| Emission |
Infrared LED ,modulated |
| Material |
Metal/plastic |
| Supply circuit type |
DC |
| Wiring technique |
4-wire |
| Discrete output type |
PNP and NPN |
| Discrete output function |
1 NO or 1 NC programmable |
| Electrical connection |
1 male connector M8 ,4 pins |
| Product specific applicatio |
Detection on small conveyordetection of double sheetdetection on vibrating raildetection of labelsdetection of reference marks |
| Enclosure material |
Painted aluminium and polyamide/glass |
| Keypad type |
Yellow |
| Type of output signal |
Discrete |
| Output type |
Solid state |
| Status LED |
adjustment mode and keypad locking: 1 LED (red) ,Output state: 1 LED (yellow) |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
100 mA (overload and short-circuit protection) |
| Switching frequency |
<= 10 kHz |
| Voltage drop |
<2 V (closed state) |
| Current consumption |
40 mA no-load |
| Setting-up |
Self teaching |
| Product certifications |
CEcULus |
| Vibration resistance |
7 gn ,amplitude = +/- 0.75 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
