قیمت محصول
توضیحات

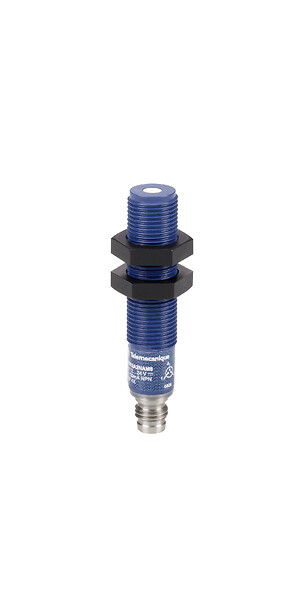

Ultrasonic sensors XX, ultrasonic sensor cylindrical M12, Sn 0.1 m, NO, M8 connector
جزئیات محصول
| وزن | 23 گرم |
|---|---|
| ابعاد | 9.5 × 3.6 × 3.6 سانتیمتر |
| Range of product |
Telemecanique Ultrasonic sensors XX |
| Sensor type |
Ultrasonic sensor |
| Series name |
General purpose |
| Sensor name |
XX5 |
| Sensor design |
Cylindrical M12 |
| Detection system |
Diffuse |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Discrete output function |
1 NO |
| Wiring technique |
3-wire |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Discrete output type |
NPN |
| Electrical connection |
Male connector M8 3 pins |
| Enclosure material |
ULTEM |
| Front material |
Epoxy |
| Thread type |
M12 x 1 |
| Voltage drop |
1 VOLT |
| Minimum size of detected ob |
Cylinder diameter 2.5 mm ,flat bar 1 mm wide |
| Delay first up |
20 MILLISECOND |
| Current consumption |
25 mA |
| Status LED |
Output state: 1 LED (yellow) ,supply on: 1 LED (green) |
| Switching frequency |
<= 125 Hz |
| Delay response |
3 MILLISECOND |
| Delay recovery |
3 MILLISECOND |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Marking |
CE |
| Standards |
IEC 60947-5-2 |
| Product certifications |
UL |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
3.6 CENTIMETER |
| Package 1 width |
3.6 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
23 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
30 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
915 GRAM |
