قیمت محصول
توضیحات

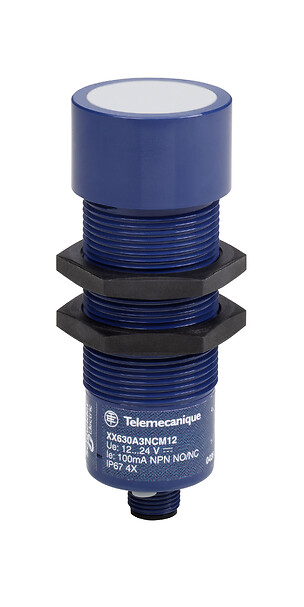

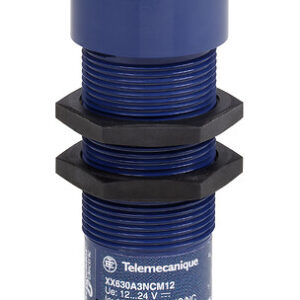

Ultrasonic sensors XX, ultrasonic sensor cylindrical M30, 2 m, 12 TO 24 V
جزئیات محصول
| وزن | 362.874 گرم |
|---|---|
| ابعاد | 15.2 × 7.6 × 7.6 سانتیمتر |
| Range of product |
Telemecanique Ultrasonic sensors XX |
| Sensor type |
Ultrasonic sensor |
| Series name |
General purpose |
| Sensor name |
XX6 |
| Sensor design |
Cylindrical M30 |
| Detection system |
Diffuse |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Discrete output function |
1 NC + 1 NO |
| Wiring technique |
4-wire |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Discrete output type |
PNP |
| Electrical connection |
Male connector M12 4 pins |
| Enclosure material |
ULTEM |
| Front material |
Silicone |
| Thread type |
M30 x 1.5 |
| Function available |
Without synchronisation mode |
| Voltage drop |
1 VOLT |
| Minimum size of detected ob |
Cylinder diameter 1.6 mm at 0.635 m |
| Delay first up |
720 MILLISECOND |
| Current consumption |
100 mA |
| Status LED |
setting-up assistance: 1 LED (green/red (flashing)) |
| Switching frequency |
<= 16 Hz |
| Delay response |
25 MILLISECOND |
| Delay recovery |
20 MILLISECOND |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Marking |
CE |
| Standards |
IEC 60947-5-2 |
| Product certifications |
CCSAusUL |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
7.6 CENTIMETER |
| Package 1 width |
7.6 CENTIMETER |
| Package 1 length |
15.2 CENTIMETER |
| Package 1 weight |
362.874 GRAM |
