XX9D1A1F1M12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

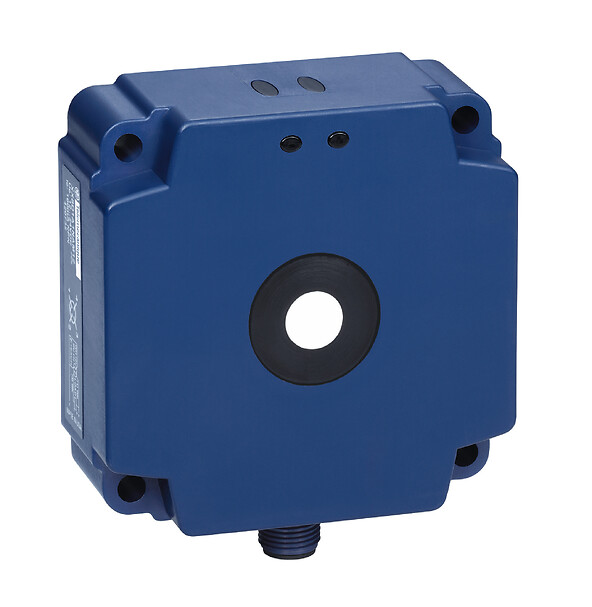

Ultrasonic sensors XX, ultrasonic sensor 80×80, Sn 1 m, 0…10 V, M12 connector
جزئیات محصول
| وزن | 300 گرم |
|---|---|
| ابعاد | 9.5 × 9.5 × 0.4 سانتیمتر |
| Range of product |
Telemecanique Ultrasonic sensors XX |
| Sensor type |
Ultrasonic sensor |
| Series name |
General purpose |
| Sensor name |
XX9 |
| Sensor design |
Flat form 80 x 80 x 34 |
| Detection system |
Diffuse |
| Material |
Plastic |
| Type of output signal |
Analogue |
| Wiring technique |
4-wire |
| Analogue output function |
0…10 V |
| [Us] rated supply voltage |
15…24 V DC with reverse polarity protection |
| Electrical connection |
Male connector M12 4 pins |
| Enclosure material |
Valox |
| Front material |
Epoxy |
| Thread type |
M30 x 1.5 |
| Minimum size of detected ob |
Cylinder diameter 50.8 mm at 1 m |
| Delay first up |
1200 MILLISECOND |
| Current consumption |
< 60 mA |
| Status LED |
Output state: 1 LED (yellow) ,Setting-up assistance: 1 LED (dual colour) ,supply on: 1 LED (green) |
| Maximum switching capacity |
2 kOhm overload and short-circuit protection |
| Setting-up |
Slope selection using teach button |
| Delay response |
250 MILLISECOND |
| Delay recovery |
250 MILLISECOND |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Marking |
CE |
| Standards |
IEC 60947-5-2 |
| Product certifications |
CCSAusUL |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
0.4 CENTIMETER |
| Package 1 width |
9.5 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
300 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
13 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.125 KILOGRAM |
