XXA30P1PM12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

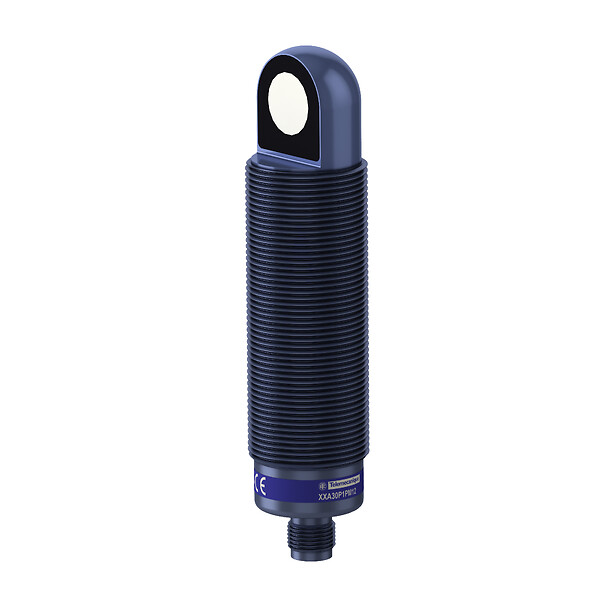

Ultrasonic sensors XX, ultrasonic sensor, plastic, cylindrical M30, angled, 1 m, PNP
جزئیات محصول
| وزن | 140 گرم |
|---|---|
| ابعاد | 13.21 × 9.65 × 4.32 سانتیمتر |
| Range of product |
Telemecanique Ultrasonic sensors XX |
| Sensor type |
Ultrasonic sensor |
| Series name |
General purpose |
| Sensor name |
XXA |
| Sensor design |
Cylindrical M30 |
| Detection system |
Diffuse (with 90° head) |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Discrete output function |
1 NO or 1 NC programmable |
| Wiring technique |
5-wire |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Discrete output type |
PNP |
| Electrical connection |
Male connector M12 5 pins |
| Enclosure material |
PBT |
| Front material |
Resinepoxyrubber |
| Function available |
Software configurablewith synchronisation mode |
| Voltage drop |
2 VOLT |
| Minimum size of detected ob |
Cylinder diameter 1 mm at 1 m |
| Delay first up |
120 MILLISECOND |
| Current consumption |
65 mA |
| Status LED |
echo state: 1 LED (green) ,Output state: 1 LED (yellow) |
| Setting-up |
Configurator softwareteach mode |
| Switching frequency |
11 Hz |
| Delay response |
45 MILLISECOND |
| Delay recovery |
45 MILLISECOND |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 |
| Marking |
CE |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-2 |
| Product certifications |
E2RCMcULusEcolab |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
4.32 CENTIMETER |
| Package 1 width |
9.65 CENTIMETER |
| Package 1 length |
13.21 CENTIMETER |
| Package 1 weight |
0.14 KILOGRAM |
