XXR18A4KAM12
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

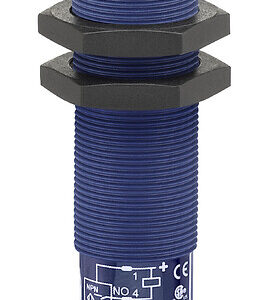

Ultrasonic sensors XX, ultrasonic sensor cylindrical M18, receiver, Sn 1 m -2 NO, M12 connector
جزئیات محصول
| وزن | 55 گرم |
|---|---|
| ابعاد | 9.5 × 6.5 × 4.1 سانتیمتر |
| Range of product |
Telemecanique Ultrasonic sensors XX |
| Sensor type |
Ultrasonic sensor receiver |
| Series name |
General purpose |
| Sensor name |
XXR |
| Sensor design |
Cylindrical M18 |
| Detection system |
Thru beam (need a transmitter XXT18A4M12) |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Discrete output function |
2 NO |
| Wiring technique |
4-wire |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Discrete output type |
PNP and NPN |
| Electrical connection |
Male connector M12 4 pins |
| Enclosure material |
ULTEM |
| Front material |
Silicone |
| Thread type |
M18 x 1 |
| Voltage drop |
1 VOLT |
| Delay first up |
100 MILLISECOND |
| Current consumption |
40 mA |
| Switching frequency |
< 40 Hz |
| Delay response |
10 MILLISECOND |
| Delay recovery |
10 MILLISECOND |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Marking |
CE |
| Standards |
IEC 60947-5-2 |
| Product certifications |
UL |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.1 CENTIMETER |
| Package 1 width |
6.5 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
55 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
6 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
1.12 KILOGRAM |
