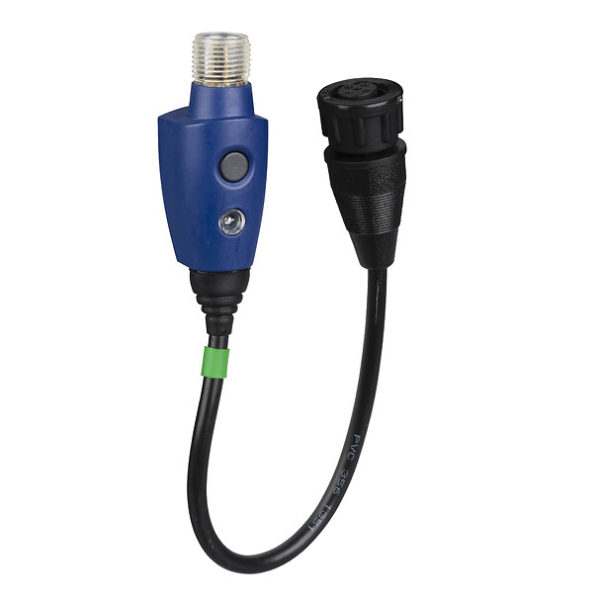

Ultrasonic sensors XX, ultrasonic sensor t V dc pnp XXSID
جزئیات محصول
| وزن | 50 گرم |
|---|---|
| ابعاد | 8.89 × 8.38 × 4.06 سانتیمتر |
| Range of product |
Telemecanique Ultrasonic sensors XX |
| Sensor type |
Ultrasonic sensor |
| Series name |
General purpose |
| Sensor name |
XXS |
| Sensor design |
Cylindrical M12 |
| Detection system |
Diffuse |
| Material |
Plastic |
| Type of output signal |
Discrete |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Voltage drop |
1 VOLT |
| Delay first up |
20 MILLISECOND |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Marking |
CE |
| Standards |
IEC 60947-5-2 |
| Product certifications |
UL |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.06 CENTIMETER |
| Package 1 width |
8.38 CENTIMETER |
| Package 1 length |
8.89 CENTIMETER |
| Package 1 weight |
0.05 KILOGRAM |
| Unit type of package 3 |
S02 |
| Package 3 height |
15 CENTIMETER |
| Package 3 width |
30 CENTIMETER |
| Package 3 length |
40 CENTIMETER |
| Unit type of package 2 |
BB1 |
| Package 3 weight |
2.588 KILOGRAM |
| Number of units in package |
25 |
| Package 2 height |
8.5 CENTIMETER |
| Package 2 width |
16.2 CENTIMETER |
| Package 2 length |
25 CENTIMETER |
| Package 2 weight |
1.11 KILOGRAM |
