XXV18B1PAL2
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

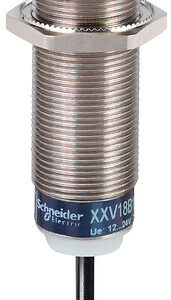

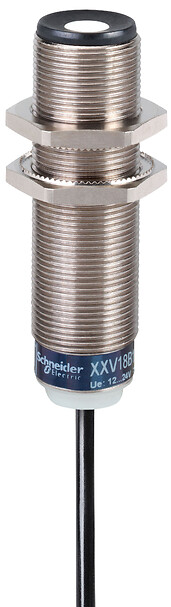

Ultrasonic sensors XX, ultrasonic sensor, M18 metal, Sn 50 mm, PNP NO, cable 2 m
جزئیات محصول
| وزن | 127.006 گرم |
|---|---|
| ابعاد | 13.208 × 9.398 × 4.064 سانتیمتر |
| Range of product |
Telemecanique Ultrasonic sensors XX |
| Sensor type |
Ultrasonic sensor |
| Series name |
General purpose |
| Sensor name |
XXV |
| Sensor design |
Cylindrical M18 |
| Detection system |
Diffuse |
| Material |
Metal |
| Type of output signal |
Discrete |
| Discrete output function |
1 NO |
| Wiring technique |
3-wire |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Discrete output type |
PNP |
| Electrical connection |
2 m cable length ,Cable |
| Enclosure material |
Brass |
| Front material |
Epoxy |
| Thread type |
M18 x 1 |
| Voltage drop |
2 VOLT |
| Minimum size of detected ob |
Cylinder diameter 2 mm at 0.02 m |
| Delay first up |
5 MILLISECOND |
| Current consumption |
15 mA |
| Status LED |
Output state: 1 LED (yellow) |
| Switching frequency |
<= 80 Hz |
| Delay response |
4 MILLISECOND |
| Delay recovery |
4 MILLISECOND |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Marking |
CE |
| Standards |
IEC 60947-5-2 |
| Product certifications |
cULus |
| Vibration resistance |
+/- 2 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
50 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
4.064 CENTIMETER |
| Package 1 width |
9.398 CENTIMETER |
| Package 1 length |
13.208 CENTIMETER |
| Package 1 weight |
127.006 GRAM |
