XXW54P3HPL01M12
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

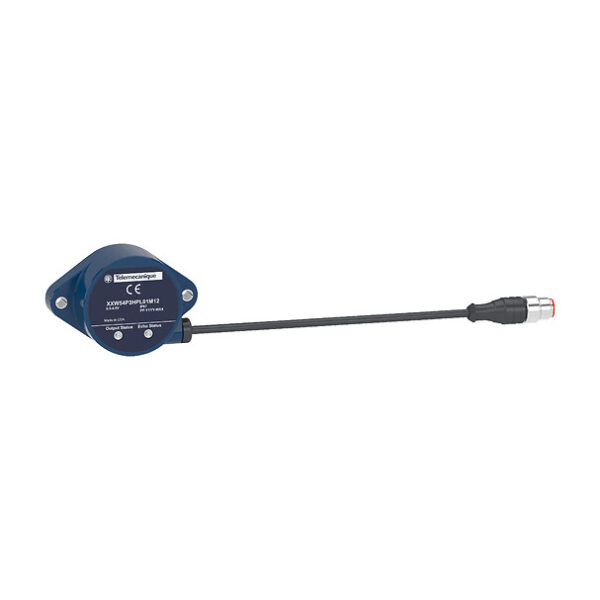

Ultrasonic sensor, plastic, Wide Beam Φ54, 3m, 0.5…4.5V+PNP, 0.15m cable + M12-5pin male connector
جزئیات محصول
| وزن | 140.614 گرم |
|---|---|
| ابعاد | 12.954 × 9.652 × 4.318 سانتیمتر |
| Range of product |
Telemecanique Ultrasonic sensors XX |
| Sensor type |
Ultrasonic sensor |
| Series name |
Application |
| Sensor name |
XXS |
| Sensor design |
Ø 54 mm |
| Detection system |
Diffuse |
| Material |
Plastic |
| Type of output signal |
Analogue + discrete |
| Discrete output function |
1 NO or 1 NC programmable |
| Wiring technique |
5-wire |
| Analogue output function |
0.5…4.5 V |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Discrete output type |
PNP |
| Electrical connection |
0.15 m cable length ,Remote male connector M12 5 pins |
| Enclosure material |
Valox |
| Front material |
Ultem |
| Function available |
Software configurablewith synchronisation mode |
| Voltage drop |
2 VOLT |
| Minimum size of detected ob |
Cylinder diameter 12 mm at 3 m |
| Delay first up |
400 MILLISECOND |
| Current consumption |
30 mA |
| Status LED |
echo state and power ON: 1 LED (green/white) ,Output state: 1 LED (yellow) |
| Maximum switching capacity |
>= 2 kOhm overload and short-circuit protection |
| Setting-up |
Configurator software |
| Switching frequency |
<= 1.6 Hz |
| Delay response |
300 MILLISECOND |
| Delay recovery |
300 MILLISECOND |
| IP degree of protection |
IP65 conforming to IEC 60529 ,IP67 conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Marking |
CE |
| Standards |
CSA C22.2 No 14UL 508IEC 60947-5-2 |
| Product certifications |
E2cULus |
| Vibration resistance |
+/-1 mm conforming to IEC 60068-2-6 (f = 10-55 Hz) |
| Shock resistance |
30 gn in all 3 axes for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.318 CENTIMETER |
| Package 1 width |
9.652 CENTIMETER |
| Package 1 length |
12.954 CENTIMETER |
| Package 1 weight |
140.614 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
4 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
800 GRAM |
