XY2CE2D297
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

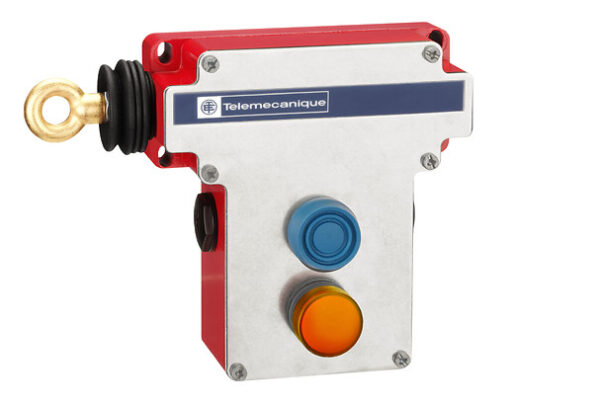

Latching emergency stop rope pull switch, Telemecanique Emergency stop rope pull switches XY2C, simple reset by flush push button
جزئیات محصول
| وزن | 1500 گرم |
|---|---|
| ابعاد | 14.8 × 19.6 × 8.2 سانتیمتر |
| Range of product |
Telemecanique Emergency stop rope pull switches XY2C |
| Product or component type |
Latching emergency stop rope pull switch |
| Device short name |
XY2CE |
| Housing colour |
Red RAL 3000 |
| Overvoltage category |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Local signalling |
Without pilot light |
| Body material |
Zamak |
| Cover material |
Stainless steel |
| Reset |
By booted push-button |
| Contacts type and compositi |
2 NC + 2 NO |
| Contact operation |
Slow-break |
| Trigger cable anchor point |
LH side |
| Connections - terminals |
1 x 0.5…2 x 1.5 mm² ,Screw clamp terminal |
| Safety level |
Can reach category 4 with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 ,can reach PL = e with the appropriate monitoring system and correctly wired conforming to EN/ISO 13849-1 ,can reach SIL 3 with the appropriate monitoring system and correctly wired conforming to EN/IEC 61508 |
| Safety reliability data |
B10d = 300000 conforming to IEC 60947-5-5 value given for a life time of 20 years limited by mechanical or contact wear |
| Marking |
CE |
| Positive opening |
With conforming to IEC 60947-5-1 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 ,25 mOhm conforming to NF C 93-050 method A |
| Terminals description ISO n |
(21-22)NC(13-14)NO |
| Compatibility code |
XY2CE |
| Standards |
CSA C22.2 No 14machinery directive 2006/42/ECIEC 60947-5-5UL 508IEC 60947-5-1IEC 60204-1work equipment directive 2009/104/ECISO 13850 |
| Product certifications |
CCC ,CSA ,UL category NISD emergency stop devices |
| Protective treatment |
TC |
| Vibration resistance |
10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Shock resistance |
50 gn 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
8.2 CENTIMETER |
| Package 1 width |
19.6 CENTIMETER |
| Package 1 length |
14.8 CENTIMETER |
| Package 1 weight |
1.5 KILOGRAM |
