XY2CE4A010
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

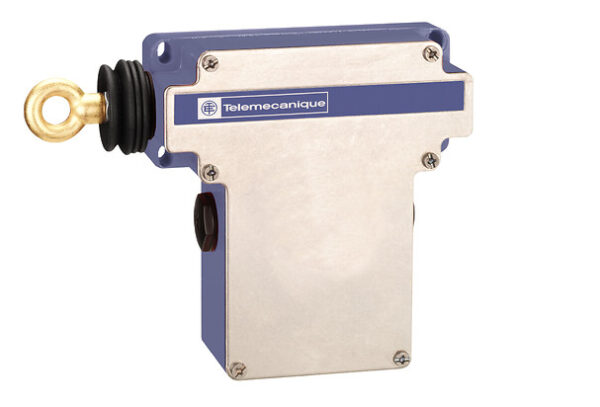

Simple emergency stop rope pull switch, Telemecanique rope pull switches XY2C, e XY2CE, LH side, 1NC+1 NO
جزئیات محصول
| وزن | 1536 گرم |
|---|---|
| ابعاد | 20.2 × 16 × 9 سانتیمتر |
| Range of product |
Telemecanique Emergency stop rope pull switches XY2C |
| Product or component type |
Simple stop rope pull switch |
| Device short name |
XY2CE |
| Housing colour |
Blue |
| Overvoltage category |
Class I conforming to IEC 61140 ,class I conforming to NF C 20-030 |
| Local signalling |
Without pilot light |
| Body material |
Zamak |
| Cover material |
Stainless steel |
| Reset |
Without |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Snap action |
| Trigger cable anchor point |
LH side |
| Connections - terminals |
1 x 0.5…2 x 1.5 mm² ,Screw clamp terminal |
| Marking |
CE |
| Positive opening |
With conforming to IEC 60947-5-1 |
| Resistance across terminals |
25 MOhm conforming to IEC 60255-7 category 3 ,25 mOhm conforming to NF C 93-050 method A |
| Compatibility code |
XY2CE |
| Standards |
IEC 60947-5-1 |
| Product certifications |
CSA |
| Protective treatment |
TC |
| Vibration resistance |
10 gn (f= 10-300 Hz) conforming to IEC 60068-2-6 |
| IP degree of protection |
IP66 conforming to IEC 60529 |
| Shock resistance |
50 gn 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
9 CENTIMETER |
| Package 1 width |
16 CENTIMETER |
| Package 1 length |
20.2 CENTIMETER |
| Package 1 weight |
1.536 KILOGRAM |
| Unit type of package 2 |
S03 |
| Number of units in package |
6 |
| Package 2 height |
30 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
9.738 KILOGRAM |
