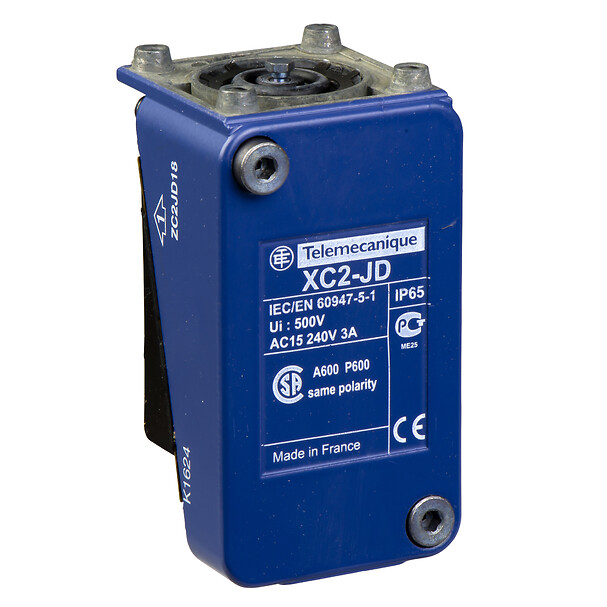

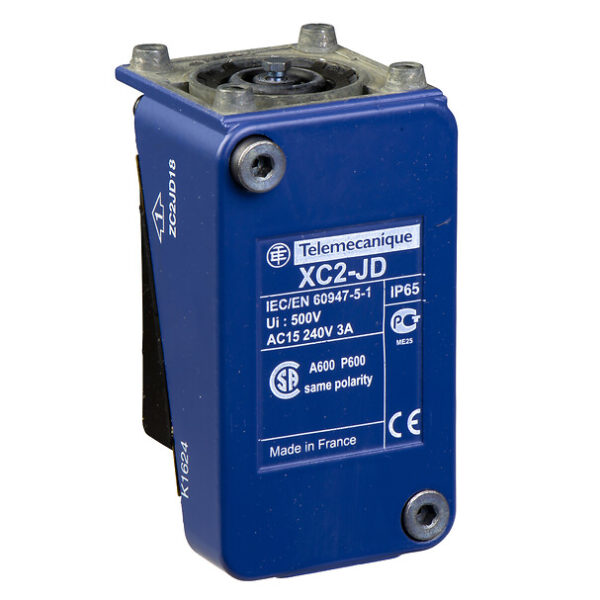

Limit switch body part with contact, Limit switches XC Standard, ZC2J plug in, without display, 1C/O
جزئیات محصول
| وزن | 219 گرم |
|---|---|
| ابعاد | 9.5 × 4.8 × 5 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch body part with contact |
| Device short name |
ZC2J |
| Body type |
Plug-in body |
| Product compatibility |
XC2J |
| Body material |
Metal |
| Cable entry |
1 tapped entry for Pg 13.5 cable gland (included) |
| Contacts type and compositi |
1 C/O |
| Contact operation |
Snap action |
| Contacts material |
Silver plated contacts |
| Electrical connection |
clamping capacity: 1 x 0.75…2 x 1.5 mm² ,Screw-clamp terminals |
| Positive opening |
Without |
| Resistance across terminals |
0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n |
(11-12)NC(13-14)NO |
| IP degree of protection |
IP65 |
| IK degree of protection |
IK08 |
| Environmental characteristi |
Corrosive |
| Unit type of package 1 |
PCE |
| Package 1 height |
5 CENTIMETER |
| Package 1 width |
4.8 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
219 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
12 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.742 KILOGRAM |
