ZCKJ121H29
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

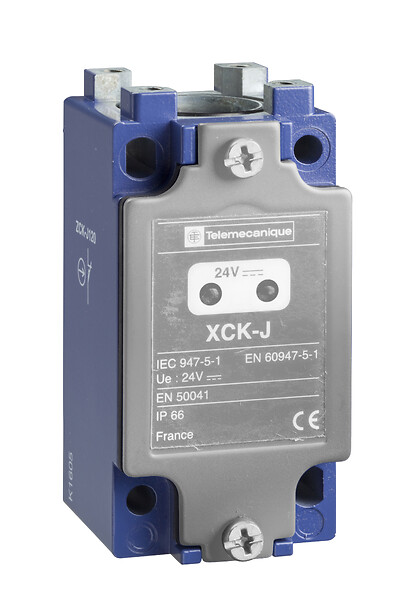

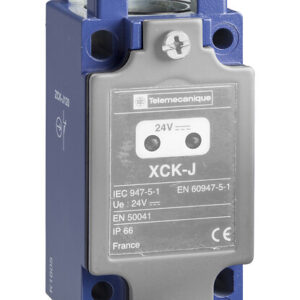

Limit switch body, Limit switches XC Standard, ZCKJ, fixed, with display, 1NC+1 NO, snap action, M20
جزئیات محصول
| وزن | 297 گرم |
|---|---|
| ابعاد | 9.1 × 4.7 × 4.4 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch body |
| Device short name |
ZCKJ |
| Body type |
Fixed |
| Product compatibility |
XCKJ |
| Body material |
Metal |
| Cable entry |
1 entry tapped for M20 x 1.5 cable gland |
| Contacts type and compositi |
1 NC + 1 NO |
| Contact operation |
Snap action |
| Contacts material |
Silver plated contacts |
| Electrical connection |
clamping capacity: 1 x 0.34…2 x 1.5 mm² ,Screw-clamp terminals |
| Positive opening |
With |
| Resistance across terminals |
0.25 mOhm conforming to IEC 60255-7 category 3 |
| Electrical circuit type |
24 V (20…30 V) service life: 100000 h with reverse polarity protection ,Indicator light module 2 LED DC |
| Terminals description ISO n |
(21-22)NC(13-14)NO |
| IP degree of protection |
IP66 |
| IK degree of protection |
IK07 |
| Environmental characteristi |
Low temperaturehigh temperaturestandard environment |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.4 CENTIMETER |
| Package 1 width |
4.7 CENTIMETER |
| Package 1 length |
9.1 CENTIMETER |
| Package 1 weight |
297 GRAM |
| Unit type of package 2 |
S01 |
| Number of units in package |
15 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
15 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.641 KILOGRAM |
