ZCKJ4045H29
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

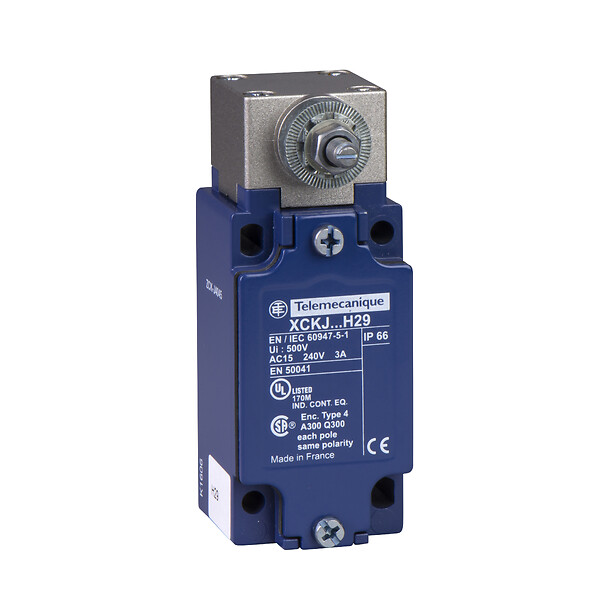

Limit switch body with spring return rotary head, Limit switches XC Standard, ZCKJ, w/o lever, fixed, 2C/O, snap, M20
جزئیات محصول
| وزن | 475 گرم |
|---|---|
| ابعاد | 13 × 6.9 × 4.3 سانتیمتر |
| Range of product |
Telemecanique Limit switches XC Standard |
| Series name |
Standard format |
| Product or component type |
Limit switch body with spring return rotary head |
| Device short name |
ZCKJ |
| Body type |
Fixed |
| Product compatibility |
XCKJ |
| Body material |
Metal |
| Cable entry |
1 entry tapped for M20 x 1.5 cable gland |
| Contacts type and compositi |
2 C/O |
| Contact operation |
Snap action |
| Contacts material |
Silver plated contacts |
| Switch actuation |
From left and right |
| Electrical connection |
clamping capacity: 1 x 0.75…2 x 1.5 mm² ,Screw-clamp terminals |
| Positive opening |
Without |
| Resistance across terminals |
0.25 mOhm conforming to IEC 60255-7 category 3 |
| Terminals description ISO n |
(23-24)NO(21-22)NC(11-12)NC(13-14)NO |
| IP degree of protection |
IP66 |
| IK degree of protection |
IK07 |
| Environmental characteristi |
Low temperaturestandard environment |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.3 CENTIMETER |
| Package 1 width |
6.9 CENTIMETER |
| Package 1 length |
13 CENTIMETER |
| Package 1 weight |
475 GRAM |
| Unit type of package 2 |
S02 |
| Number of units in package |
18 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
8.838 KILOGRAM |
