XS1M12AB120EX
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

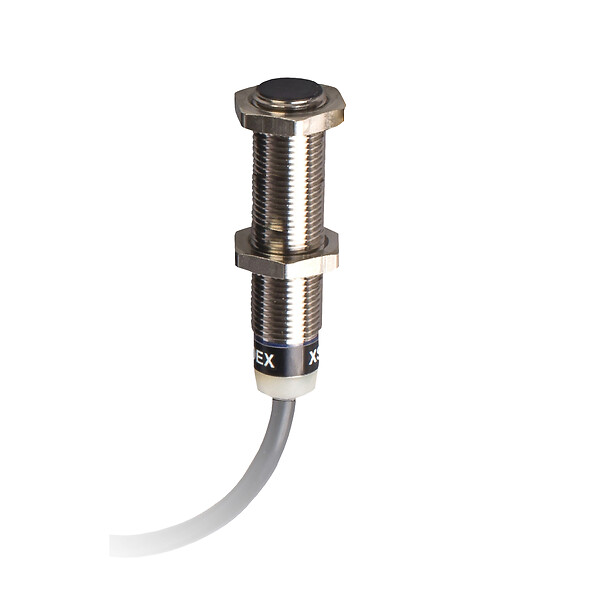

Inductive proximity sensors XS for hazardous area dust, inductive sensor analog, M12, Sn2mm, 12…24 VDC, cable 2 m
جزئیات محصول
| وزن | 140 گرم |
|---|---|
| ابعاد | 9.5 × 4 × 13 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS1 |
| Device application |
ATEX dust |
| Sensor design |
Cylindrical M12 |
| Size |
12 mm |
| Body type |
Fixed |
| Type of output signal |
Analogue |
| Wiring technique |
2-wire |
| Detector flush mounting acc |
Flush mountable |
| Material |
Metal |
| Analogue output range |
4…20 mA |
| Electrical connection |
Cable |
| Output circuit type |
DC |
| [Us] rated supply voltage |
12…24 V DC |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Enclosure material |
Nickel plated brass |
| Detection face |
Frontal |
| Thread type |
M12 x 1 |
| Front material |
PPS |
| Sensing range |
> 0…2.5 mm |
| Linearity error |
+/- 2 mA |
| Repeat accuracy |
<= 3% of Sr |
| Cable composition |
3 x 0.34 mm² |
| Wire insulation material |
PVC |
| Switching frequency |
<= 1500 Hz |
| Output current drift |
10 PERCENTAGE |
| Current consumption |
4 mA no-load |
| Marking |
II2 D-Ex tb IIIC T90°C Db IP67 |
| Product certifications |
INERIS 04ATEX0022 |
| Standards |
IEC 60079-31IEC 60079-0 |
| Environmental characteristi |
Hazardous location |
| Directives |
94/9/EC – ATEX directive |
| Dust zone |
Zone 21 – 22 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
| Package 1 height |
13 CENTIMETER |
| Package 1 width |
4 CENTIMETER |
| Package 1 length |
9.5 CENTIMETER |
| Package 1 weight |
140 GRAM |
