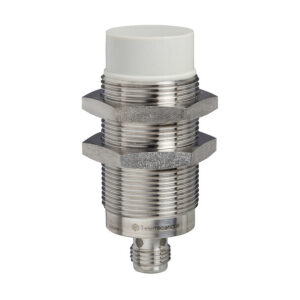

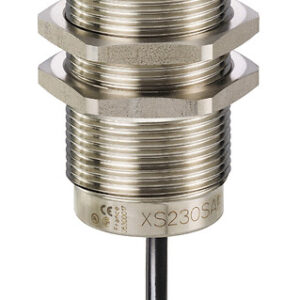

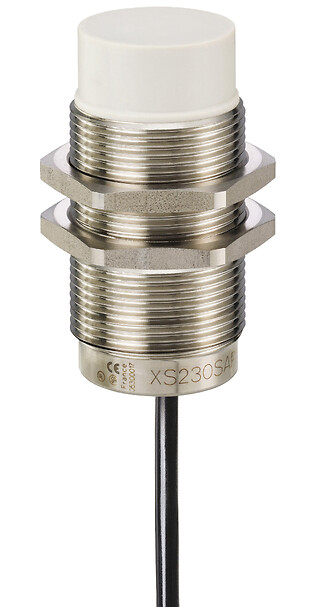

Inductive proximity sensors XS, inductive sensor XS2 M30, L63mm, stainless, Sn22mm, 24…240VAC/DC, L5m
جزئیات محصول
| Range of product |
Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name |
Application |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS2 |
| Device application |
Food and beverage |
| Sensor design |
Cylindrical M30 |
| Size |
63 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO |
| Detector flush mounting acc |
Non flush mountable |
| Material |
Stainless steel |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
24…240 V AC 50/60 Hz ,24…240 V DC |
| Output circuit type |
AC/DC |
| Switching capacity in mA |
5…200 mA DC ,5…300 mA AC |
| IP degree of protection |
IP68 double insulation conforming to IEC 60529 ,IP69K conforming to DIN 40050 |
| Enclosure material |
Stainless steel 316 L |
| Detection face |
Frontal |
| Thread type |
M30 x 1.5 |
| Front material |
PPS |
| Sensing range |
> 15…40 mm |
| Differential travel |
1…15 % of Sr |
| Cable composition |
2 x 0.34 mm² |
| Residual current |
0.8 mA open state |
| Status LED |
Output state: 1 LED (yellow) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 25 Hz AC ,<= 300 Hz DC |
| Voltage drop |
<5.5 V (closed) |
| Delay first up |
30 MILLISECOND |
| Delay response |
0.5 MILLISECOND |
| Marking |
CE |
| Delay recovery |
2 MILLISECOND |
| Product certifications |
CSACCCUL |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Number of units in package |
1 |
