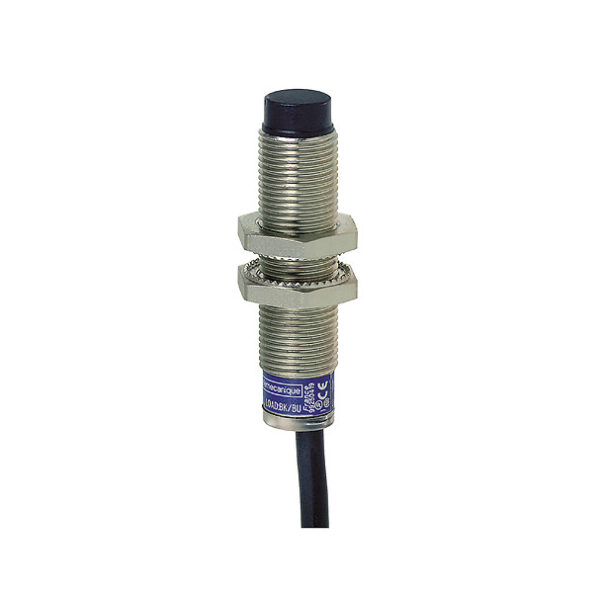

Inductive proximity sensors XS, inductive sensor XS2 M12, L50mm, brass, Sn4mm, DC, cable 2 m
جزئیات محصول
| Range of product | Telemecanique Inductive proximity sensors XS |
|---|---|
| Series name | Application |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Sensor design | Cylindrical M12 |
| Size | 54 mm |
| Body type | Fixed |
| Type of output signal | Analogue |
| Wiring technique | 2-wire |
| Detector flush mounting acc | Non flush mountable |
| Material | Metal |
| Analogue output range | 4…20 mA |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12…24 V DC |
| Output circuit type | DC |
| IP degree of protection | IP67 conforming to IEC 60529 |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M12 x 1 |
| Front material | PPS |
| Sensing range | > 2.5…4 mm |
| Switching frequency | <= 1500 Hz |
| Output current drift | 10 PERCENTAGE |
| Current consumption | 4 mA no-load |
| Marking | CE |
| Product certifications | CSACCCUL |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
