XS2M12KP340
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

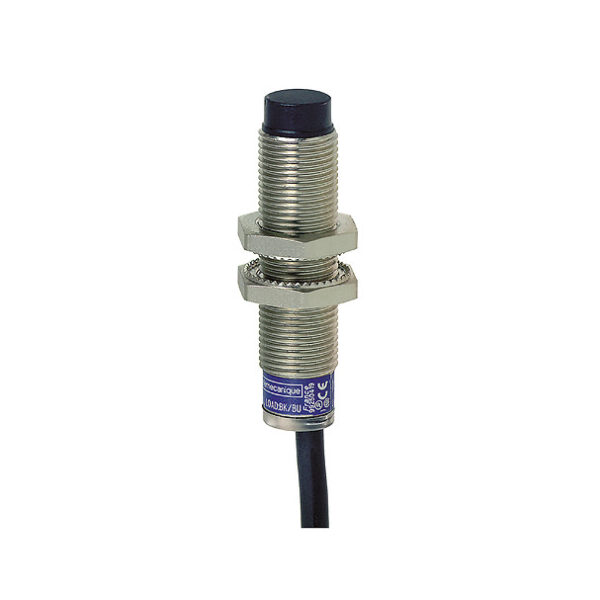

Inductive sensor XS2 M12, L55mm, brass, Sn4mm, 12..24VDC, cable 2m
جزئیات محصول
| وزن | 84 گرم |
|---|---|
| ابعاد | 14.3 × 11.9 × 3.1 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS2 |
| Sensor design | Cylindrical M12 |
| Size | 55 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 4-wire |
| Discrete output function | 1 NO or 1 NC programmable |
| Detector flush mounting acc | Non flush mountable |
| Discrete output type | PNP and NPN |
| Material | Metal |
| Electrical connection | Cable |
| [Us] rated supply voltage | 12…24 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP68 double insulation conforming to IEC 60529 |
| Enclosure material | Nickel plated brass |
| Detection face | Frontal |
| Thread type | M12 x 1 |
| Front material | PPS |
| Sensing range | > 2.5…4 mm |
| Differential travel | 1…15 % of Sr |
| Cable composition | 4 x 0.22 mm² |
| Status LED | Output state: 1 LED (yellow) |
| Wire insulation material | PVC |
| Switching frequency | <= 5000 Hz |
| Voltage drop | <2.6 V (closed) |
| Current consumption | 0…10 mA no-load |
| Delay first up | 5 MILLISECOND |
| Delay response | 0.1 MILLISECOND |
| Marking | CE |
| Delay recovery | 0.1 MILLISECOND |
| Product certifications | CSAUL |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Package 1 height | 3.1 CENTIMETER |
| Package 1 width | 11.9 CENTIMETER |
| Package 1 length | 14.3 CENTIMETER |
| Package 1 weight | 84 GRAM |
| Unit type of package 2 | S02 |
| Number of units in package | 22 |
| Package 2 height | 15 CENTIMETER |
| Package 2 width | 30 CENTIMETER |
| Package 2 length | 40 CENTIMETER |
| Package 2 weight | 2.152 KILOGRAM |
