XS508B1DAL2
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

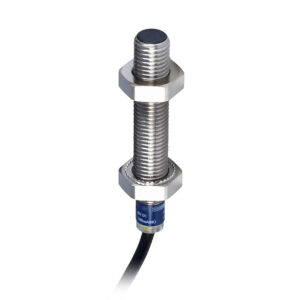

Inductive proximity sensors XS, inductive sensor XS5 M8, L51mm, stainless, Sn1.5 mm, 12…48 VDC, cable 2 m
جزئیات محصول
| وزن | 39 گرم |
|---|---|
| ابعاد | 13.2 × 9.7 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Sensor name |
XS5 |
| Device application |
Not applicable |
| Sensor design |
Cylindrical M8 |
| Size |
51 mm |
| Body type |
Fixed |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Discrete output function |
1 NO |
| Detector flush mounting acc |
Flush mountable |
| Material |
Stainless steel |
| Electrical connection |
Cable |
| [Us] rated supply voltage |
12…48 V DC |
| Output circuit type |
DC |
| Switching capacity in mA |
1.5…100 mA DC with overload and short-circuit protection |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Enclosure material |
Stainless steel 303 |
| Detection face |
Frontal |
| Thread type |
M8 x 1 |
| Front material |
PPS |
| Sensing range |
> 0…2.5 mm |
| Differential travel |
1…15 % of Sr |
| Cable composition |
2 x 0.11 mm² |
| Residual current |
0.5 mA open state |
| Status LED |
Output state: 1 LED (yellow) |
| Wire insulation material |
PVC |
| Switching frequency |
<= 4000 Hz |
| Voltage drop |
<4 V (closed) |
| Delay first up |
10 MILLISECOND |
| Delay response |
0.2 MILLISECOND |
| Marking |
CE |
| Delay recovery |
0.2 MILLISECOND |
| Product certifications |
CSACCCUL |
| Vibration resistance |
25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 |
PCE |
| Package 1 height |
4.2 CENTIMETER |
| Package 1 width |
9.7 CENTIMETER |
| Package 1 length |
13.2 CENTIMETER |
| Package 1 weight |
39 GRAM |
| Unit type of package 2 |
S03 |
| Number of units in package |
44 |
| Package 2 height |
30 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
2.275 KILOGRAM |
