XS7T2DA210
جدید
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

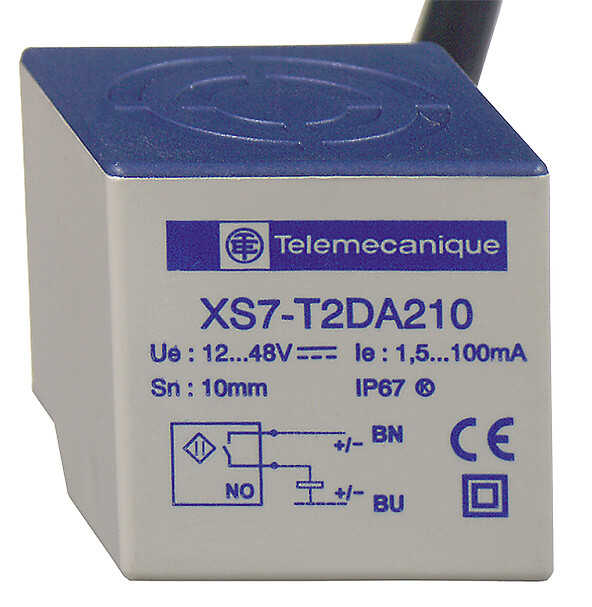

Inductive proximity sensors XS, inductive sensor XS7 26x26x26, plastic, Sn10mm, 12…48 VDC, cable 2 m
جزئیات محصول
| وزن | 158 گرم |
|---|---|
| ابعاد | 8 × 12.6 × 5.4 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
General purpose |
| Sensor type |
Inductive proximity sensor |
| Product specific applicatio |
Not applicable |
| Sensor name |
XS7 |
| Sensor design |
Cubic form 26 x 26 x 26 |
| Size |
26 mm |
| Body type |
Fixed |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Type of output signal |
Discrete |
| Wiring technique |
2-wire |
| Output circuit type |
DC |
| Discrete output function |
1 NO |
| Electrical connection |
Cable |
| Switching capacity in mA |
1.5…100 mA |
| [Us] rated supply voltage |
12…48 V DC |
| IP degree of protection |
IP67 |
| Enclosure material |
Plastic |
| Detection face |
5 positions turret head |
| Front material |
Plastic |
| Sensing range |
8…15 mm |
| Cable composition |
2 x 0.5 mm² |
| Wire insulation material |
PvR |
| Switching frequency |
<= 100 Hz |
| Marking |
CE |
| Product certifications |
CSACCCUL |
| Unit type of package 2 |
S02 |
| Package 1 height |
5.4 CENTIMETER |
| Package 1 width |
12.6 CENTIMETER |
| Package 2 height |
15 CENTIMETER |
| Package 1 length |
8 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 1 weight |
158 GRAM |
| Unit type of package 1 |
PCE |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
3.8 KILOGRAM |
| Unit type of package 3 |
P06 |
| Number of units in package |
320 |
| Package 3 height |
75 CENTIMETER |
| Package 3 width |
40 CENTIMETER |
| Package 3 length |
80 CENTIMETER |
| Package 3 weight |
69 KILOGRAM |
