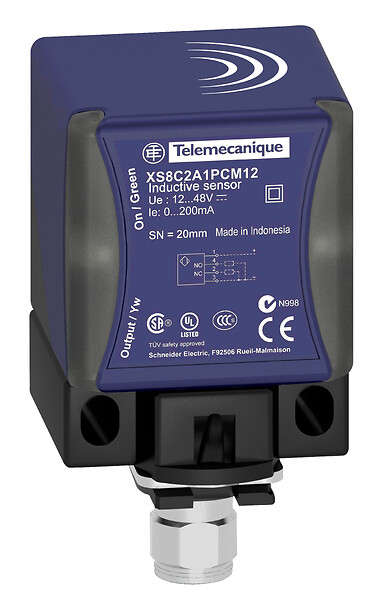

XS8C2A1PCM12TF
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات
Inductive proximity sensors XS, inductive sensor XS8 40x40x70, PBT, Sn20 mm, 12…48 VDC, M12
جزئیات محصول
| وزن | 142 گرم |
|---|---|
| ابعاد | 4.7 × 4.3 × 8.9 سانتیمتر |
| Range of product | Telemecanique Inductive proximity sensors XS |
| Series name | General purpose |
| Sensor type | Inductive proximity sensor |
| Sensor name | XS8 |
| Device application | Mobile equipment |
| Sensor design | Form 40 x 40 x 70 |
| Size | 70 mm |
| Body type | Fixed |
| Type of output signal | Discrete |
| Wiring technique | 3-wire |
| Discrete output function | 1 NO + 1 NC |
| Detector flush mounting acc | Flush mountable |
| Discrete output type | PNP |
| Material | Plastic |
| Electrical connection | 4 pins, Male connector M12 |
| [Us] rated supply voltage | 12…48 V DC with reverse polarity protection |
| Output circuit type | DC |
| Switching capacity in mA | <= 200 mA with overload and short-circuit protection |
| IP degree of protection | IP65 conforming to IEC 60529, IP67 conforming to IEC 60529, IP69K conforming to DIN 40050 |
| Enclosure material | PBT |
| Detection face | 5 positions turret head |
| Safety level | PL = d conforming to ISO 13849-1, SIL 2 conforming to IEC 61508, SILCL 2 conforming to IEC 62061 |
| Front material | PBT |
| Safety reliability data | DC = 75 % with appropriate safety controller, MTTFd = 1546 years, PFHd = 7.4E-8 1/h, SFF = 92 % |
| Sensing range | > 15…40 mm |
| Differential travel | 3…15% of Sr |
| Repeat accuracy | <= 3% of Sr |
| Status LED | Output state: 1 LED (yellow), supply on: 1 LED (green) |
| Switching frequency | <= 300 Hz |
| Voltage drop | <2 V (closed) |
| Current consumption | 0…15 mA no-load |
| Delay first up | 7.5 MILLISECOND |
| Delay response | 1.2 MILLISECOND |
| Marking | CE |
| Delay recovery | 1.8 MILLISECOND |
| Product certifications | CSACCCTÜVULE2 |
| Vibration resistance | 25 gn amplitude = +/- 2 mm (f = 10-55 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 50 gn for 11 ms conforming to IEC 60068-2-27 |
| Unit type of package 1 | PCE |
| Number of units in package | 1 |
| Package 1 height | 8.9 CENTIMETER |
| Package 1 width | 4.3 CENTIMETER |
| Package 1 length | 4.7 CENTIMETER |
| Package 1 weight | 142 GRAM |
