XS8S173PAL2C
ارسال سریع
با پست پیشتاز
پشتیبانی ۲۴ ساعته
و ۷ روز هفته
تضمین کیفیت
و تضمین اصالت
رضایت مشتریان
افتخار ماست
قیمت محصول
توضیحات

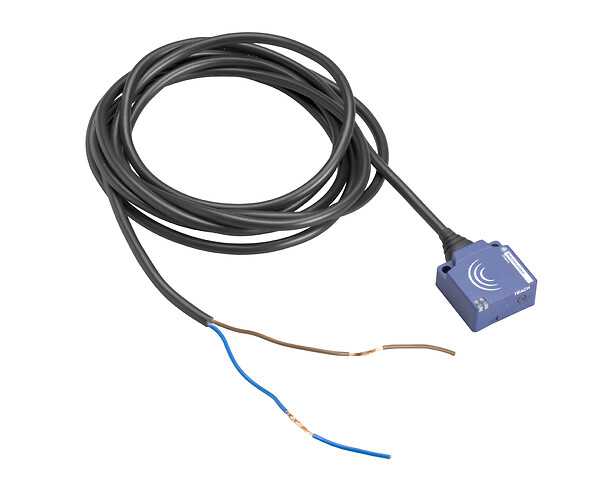

Inductive proximity sensors XS, little square 17x17mm, PBT, flush, Sn 5 mm, PNP, NO, cable 2 m
جزئیات محصول
| وزن | 60 گرم |
|---|---|
| ابعاد | 13.876 × 10.575 × 2.531 سانتیمتر |
| Range of product |
Telemecanique Inductive proximity sensors XS |
| Series name |
Basic |
| Sensor type |
Inductive proximity sensor |
| Device application |
Not applicable |
| Sensor name |
XS8 |
| Body type |
Fixed |
| Enclosure material |
PBT |
| Type of output signal |
Discrete |
| Wiring technique |
3-wire |
| Discrete output function |
1 NO |
| Electrical connection |
Cable |
| Discrete output type |
PNP |
| IP degree of protection |
IP67 conforming to IEC 60529 |
| Switching capacity in mA |
<= 100 mA DC with overload and short-circuit protection |
| Detector flush mounting acc |
Flush mountable |
| Material |
Plastic |
| Detection face |
Frontal |
| Front material |
PBT |
| Differential travel |
+/- 10 % of Sr |
| Wire insulation material |
PVC |
| Cable composition |
3 x 0.30 mm² |
| Switching frequency |
<= 1000 Hz |
| Residual current |
1.5 mA open state |
| Current consumption |
<= 15 mA no-load |
| Voltage drop |
<2.5 V (closed) |
| Delay first up |
10 MILLISECOND |
| Marking |
CE |
| Delay response |
1.2 MILLISECOND |
| Delay recovery |
0.5 MILLISECOND |
| Shock resistance |
50 gn for 11 ms conforming to IEC 60068-2-27 |
| Vibration resistance |
25 gn amplitude = +/- 1.5 mm (f = 10-50 Hz) conforming to IEC 60068-2-6 |
| Unit type of package 1 |
PCE |
| Package 1 height |
2.531 CENTIMETER |
| Package 1 width |
10.575 CENTIMETER |
| Package 1 weight |
0.06 KILOGRAM |
| Package 1 length |
13.876 CENTIMETER |
| Unit type of package 2 |
S02 |
| Number of units in package |
72 |
| Package 2 height |
15 CENTIMETER |
| Package 2 width |
30 CENTIMETER |
| Package 2 length |
40 CENTIMETER |
| Package 2 weight |
4.32 KILOGRAM |
