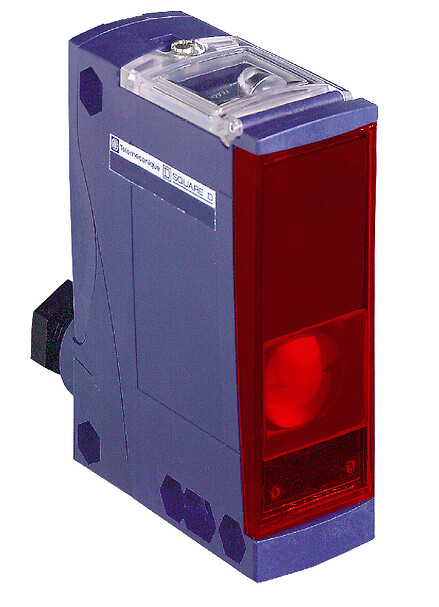

Photoelectric sensors XU, XUX, emitter, 12…24 VDC, terminals
جزئیات محصول
| وزن | 183 گرم |
|---|---|
| ابعاد | 13 × 9.5 × 4.2 سانتیمتر |
| Range of product |
Telemecanique Photoelectric sensors XU |
| Series name |
General purpose multimode |
| Electronic sensor type |
Photo-electric sensor transmitter |
| Sensor name |
XUX |
| Sensor design |
Compact 92 x 71 |
| Detection system |
Thru beam |
| Material |
Plastic |
| Supply circuit type |
DC |
| Wiring technique |
3-wire |
| Electrical connection |
1 x 1.5 mm² or 1 x 0.75 mm² with adaptor ,Screw-clamp terminals |
| Product specific applicatio |
Not applicable |
| Emission |
infrared thru beam |
| Enclosure material |
PBT |
| Lens material |
PMMA |
| Cable entry |
1 entry for M16 x 1.5 cable gland ,cable outer diameter: 7-10 mm |
| Status LED |
1 LED (green) for supply on |
| [Us] rated supply voltage |
12…24 V DC with reverse polarity protection |
| Switching capacity in mA |
<= 100 mA (overload and short-circuit protection) |
| Switching frequency |
250 Hz |
| Maximum voltage drop |
<1.5 V (closed state) |
| Current consumption |
20 mA no-load |
| Delay first up |
200 MILLISECOND |
| Delay response |
2 MILLISECOND |
